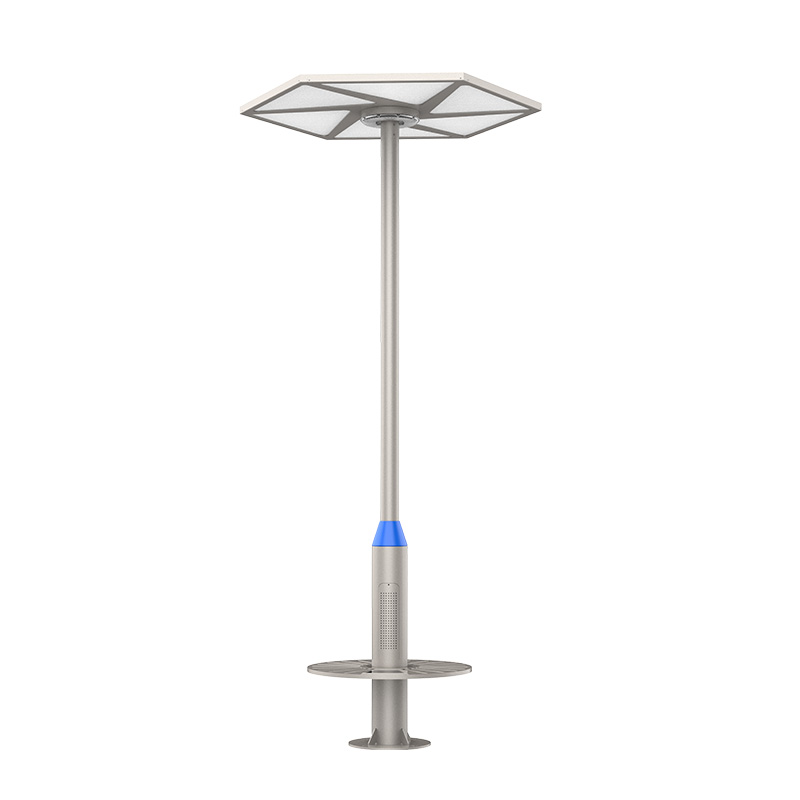

● Design inspiration is "sun umbrella"
● Using solar PV system, energy saving and environmental protection, simple installation.
● Photovoltaic modules is using monocrystalline silicon panels, conversion efficiency is up to 18% , the lifetime is 20 years
● The energy storage system is using lithium battery, low temperature resistance,  high charging and discharging efficiency and long lifetime.
● Built-in advanced microcomputer system, automatic management of switch lights and energy storage systems.monitor the battery discharge condition in real time, adjust the brightness of the light source and turn off time according to the electric quantity.
● The lampshade is light diffuser plate lampshade,non-glare
● Light source:medium power LED



The product modelS-J182AS-J182B
The power supply modeSolar energy is self-powered by DC12VElectricity connection to AC220V± 20%
The maximum power of the system35W35W
Main lighting maximum power21W21W
Main Type of the LEDIn the powerIn the power
Main LED Chip Quantity252pcs252pcs
Main Light Temperature Color (k)3750~42503750~4250
Auxiliary Light Rated Power3.5W3.5W
Auxiliary Type of the LEDIn the powerIn the power
Auxiliary LED Chip Quantity42pcs42pcs
Auxiliary Light Temperature Color (k)3000K3000K
Public broadcast system power30W30W
Single crystal silicon photovoltaic module35W×6--------
Lithium battery capacity468Wh--------
Lights on timeUsing a solar-energy intelligent controller,The system automatically adjusts the power operation according to the power quantitySet the switch time according to the requirements
Can support continuous rain days3~7 Days--------
Single crystal silicon pv module lifeIn 20 years--------
Lithium battery life8~10 Years--------
LEDLifetime>30000h>30000h
Operating Temperature-20℃~+50℃-20℃~+50℃
Operating Humidity10%~90%10%~90%
Order typeFunction Module

Photovoltaic module + lithium battery key lightingAuxiliary lightingWireless phone chargingPublic broadcastingLeisure seats









      parameterMonocrystalline silicon photovoltaic modulesOutput voltage is 18VPower: 35W * 6Conversion efficiency: 18%Ultra-white tempered glass packaginglithium cell:Light light charging, intelligent computingOvercharge voltage:, 16.8VOverput voltage:, 11.6VOperating temperature: -25~ + 65℃ Adapter pv module: 18~20Voutput:0.6A,42VLevel of protection: IP65Infrared controlColor temperature: 3750K~4250KFull power: 21WColor temperature: 3,000 KFull power: 3.5WInput: 9V / 2Aoutput:,10WCharging distance: 6~20mmWireless charging standard: QI-BPPPower: 30WCommunication Protocol: TCP / IP, SIP, UDP, ARP, ICMP, IGMP Frequency Response: 50Hz~20KHzAudio Sampling: 8kHz~44.1kHz,16bitAudio code: MP2 /MP3/PCM/ADPCMStainless steel spray plasticHeight: 46cmdiameter:1mBearing capacity: 300KG
J182A-1○○○○○○
J182A-2○○○

○
J182B-1
○○
