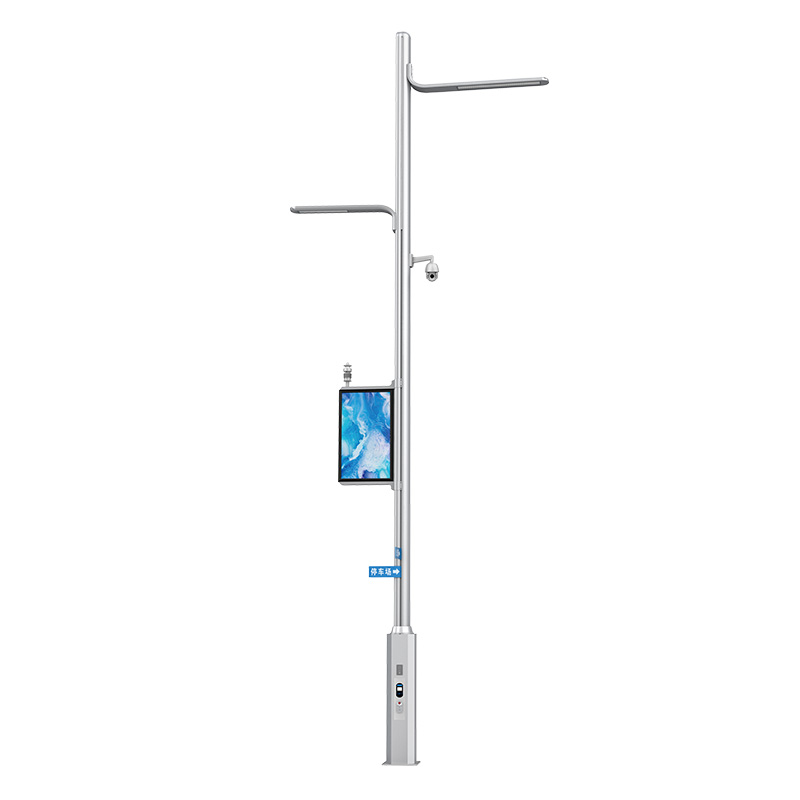

ZD201

‹

›

‹

  • ZD201

›

MESSAGR
CONTACT US

● Simple and fashion design, with independent patent
● Combined with steel and aluminum, the surface is sprayed by outdoorspecial plastic powder
● Special optical and thermal issue structure design,make sure the light works efficiently and reliable
● The light source is using high luminous efficiency LED



 product model：ZD201
LED  kindHigh light effect LED  power factor>0.9 life len>30000h
 power rating240W/120WLight source color temperature (k)3750~4250 operating ambient temperature-20℃~+50℃
 input voltageAC220V±20% color rendering index；rendering index≥ Ra70Humidity of working environment10％~90％
 frequency range50/60HzLight efficiency (lm/w)≥ 110 levels of protectionIP65
Meteorological monitoring
 meteorologic elementsWind speed, wind direction, temperature, humidity, air pressure, rainfall, PM10, PM2.5, noise temperature resolution0.1℃Wind speed resolution0.1m/s
working voltageDC9～30VHumidity resolution0.1%RHPM2.5 resolution0.3ug/m³
 signal outputRS485Air pressure resolution0.1hPaPM10 resolution0.3ug/m³
wireless WIFI
Wireless band2.4GHz /5GHzMaximum standby80 PeoplesourceIEEE 802.3at Standard PoE,12-53.5V DC
maximum rate1900Mbps management modelFIT AP mode, FAT AP mode operating ambient temperature-30℃~+65℃
Antenna typeAll direction 360Coverage radius150 Meterslevels of protectionIP68
Regional monitoring
 pixel200WInfrared complement light distance150 Metersworking temperature-30℃~+65℃
 video compressionH.265/H.264/MJPEGsource sourceAC24V， 24W maxWorking humidityHumidity is less than 90%
Resolution and Frame RateSupport for a maximum of 19201080@30fpsVertical range-15°~90° levels of protectionIP66,6000 V lightning protection, surge prevention and sudden wave prevention
The number doubled16 Times horizontal extent360°

The LED information release screen
Module pixel spacing3.84mmRefresh frequency3840Hz functional parameterManual automatic control, temperature control fan
Displays the size800mm*1400mmWiring power1000W  working temperature-40℃ ～+ 80℃
Machine size902mm*1506mm*95mm mean power250W / unit250W/ 台Enter the power supplyAC220V±10%
 luminance≥ 6000CD/m² communication interface4G + WIFI + network port cluster control levels of protectionIP65
IP network sound column
power30WAudio samplingAudio sampling8KHz～44.1KHz，16bit working temperature-20℃ ~ +50℃
 protocolTCP/IP、SIP、UDP、ARP、 ICMP、IGMPAudio codingMP2/MP3/PCM/ADPCM sourceDC24V/2.75A
Line input sensitivity1VRms frequency response50Hz~20KHz

One key alarm
 networking protocolTCP/IP、UDP、ARP、ICMP、 IGMP、HTTPWide Angle visibility140°~160°working temperature-20℃~ +60℃
Video resolutionQVGA/VGA/720P/1080P frequency response20Hz~18KHz power input12V/2A
 charging pile
power rating7KW input voltageAC220V±15% levels of protection≥ IP54
Charging methodCommunication single chargePay wayBrush the card, QR code scanning code payment operating ambient temperature-20℃ ~ +50℃
Allocation standard standard configuration apolegamy；match；selective breeding
LED lighting○
Meteorological monitoring
○
Wireless WIFI
○
Region surveillance
○
LED information release screen
○
IP network speaker
○
One-key alarm
○
Charging pile
○
