● Simple and fashion design, with independent patent

● The light is high quality steel ,the surface is sprayed by outdoor special plastic powder after hot galvanize
● Special optical and thermal issue structure design,make sure the light works efficiently and reliable
● The light source can be selected with high power 5050LED,medium power 3030LED
● Using ultra-white tempered glass, not easy to be contaminated with dust、oil pollution, high luminous flux maintenance rate
● The light source cavity is equipped with the aspirator, which can balance the pressure inside and outside the cavity, eliminate the fog and condensation inside the cavity, and ensure the  light transmission output and the life of the LED.

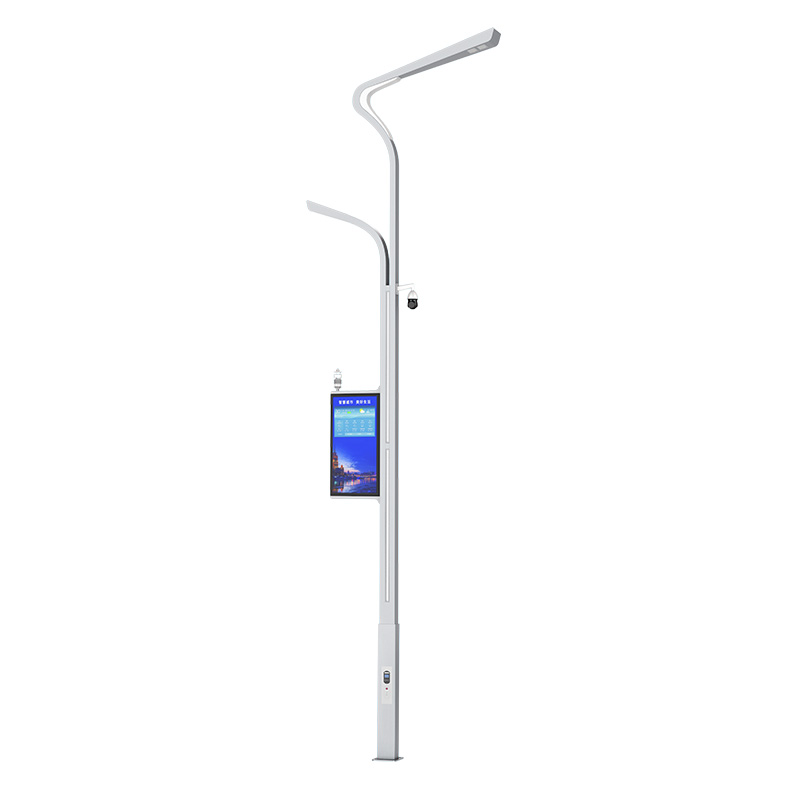

 product model:Z192
LED  kindHigh light effect LED  power factor>0.9 life len>30000h
 power rating240W/120WLight source color temperature (k)3750~4250 operating ambient temperature-20℃~+50℃
 input voltageAC220V±20% color rendering index;rendering index≥ Ra70Humidity of working environment10%~90%
 frequency range50/60HzLight efficiency (lm/w)≥ 110 levels of protectionIP65
Meteorological monitoring
 meteorologic elementsWind speed, wind direction, temperature, humidity, air pressure, rainfall, PM10, PM2.5, noise temperature resolution0.1℃Wind speed resolution0.1m/s
working voltageDC9~30VHumidity resolution0.1%RHPM2.5 resolution0.3ug/m³
 signal outputRS485Air pressure resolution0.1hPaPM10 resolution0.3ug/m³
wireless WIFI
Wireless band2.4GHz /5GHzMaximum standby80 PeoplesourceIEEE 802.3at Standard PoE,12-53.5V DC
maximum rate1900Mbps management modelFIT AP mode, FAT AP mode operating ambient temperature-30℃~+65℃
Antenna typeAll direction 360Coverage radius150 Meterslevels of protectionIP68
Regional monitoring
 pixel200WInfrared complement light distance150 Metersworking temperature-30℃~+65℃
 video compressionH.265/H.264/MJPEGsource sourceAC24V, 24W maxWorking humidityHumidity is less than 90%
Resolution and Frame RateSupport for a maximum of 19201080@30fpsVertical range-15°~90° levels of protectionIP66,6000 V lightning protection, surge prevention and sudden wave prevention
The number doubled16 Times horizontal extent360°

The LED information release screen
Module pixel spacing3.84mmRefresh frequency3840Hz functional parameterManual automatic control, temperature control fan
Displays the size800mm*1400mmWiring power1000W  working temperature-40℃ ~+ 80℃
Machine size902mm*1506mm*95mm mean power250W / unit250W/ 台Enter the power supplyAC220V±10%
 luminance≥ 6000CD/m² communication interface4G + WIFI + network port cluster control levels of protectionIP65
IP network sound column
power30WAudio samplingAudio sampling8KHz~44.1KHz,16bit working temperature-20℃ ~ +50℃
 protocolTCP/IP、SIP、UDP、ARP、 ICMP、IGMPAudio codingMP2/MP3/PCM/ADPCM sourceDC24V/2.75A
Line input sensitivity1VRms frequency response50Hz~20KHz

One key alarm
 networking protocolTCP/IP、UDP、ARP、ICMP、 IGMP、HTTPWide Angle visibility140°~160°working temperature-20℃~ +60℃
Video resolutionQVGA/VGA/720P/1080P frequency response20Hz~18KHz power input12V/2A
 charging pile
power rating7KW input voltageAC220V±15% levels of protection≥ IP54
Charging methodCommunication single chargePay wayBrush the card, QR code scanning code payment operating ambient temperature-20℃ ~ +50℃
Allocation standard standard configuration apolegamy;match;selective breeding
LED lighting
Meteorological monitoring
Wireless WIFI
Region surveillance
LED information release screen
IP network speaker
One-key alarm
Charging pile
