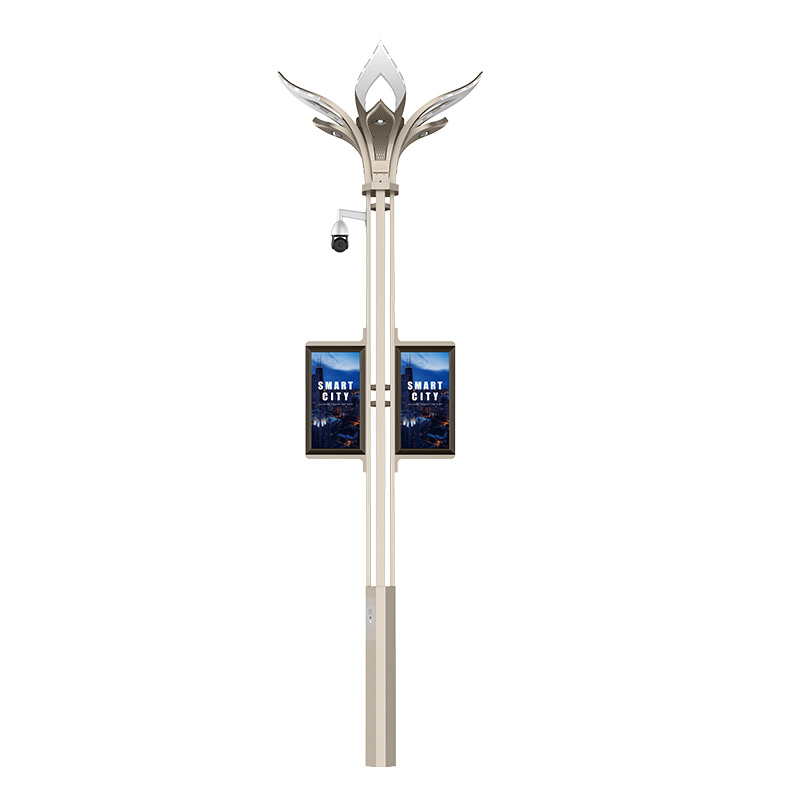

ZJ172

‹

›

‹

  • ZJ172

›

MESSAGR
CONTACT US

● Lotus form design, simple and fashion design
● The light is combined with aluminum and steel, the surface is sprayed by special plastic powder.
● PC lampshade , high-temperature resistance and anti-aging
● The main light source is multiple chip integration package LED



 product model：ZJ172
Main lamp: LED typeCOB input voltageAC220V±20%Main light effect (lm/w)≥ 125
The LED type of the auxiliary lampIn the powerfrequency range50/60Hzlife length>30000h
Main lamp power20W/30W power factor>0.9operating ambient temperature-20℃~+50℃
Auxiliary lamp power20WColor temperature of main light source (k)3750~4250Humidity of working environment10％~90％
Main lamp LED number1pcColor temperature of auxiliary light source (k)6000~6500 levels of protectionIP65
Number of auxiliary lamp LED33pcs color rendering index≥ Ra70

Meteorological monitoringspacer.gif
 meteorologic elementsWind speed, wind direction, temperature, humidity, air pressure, rainfall, PM10, PM2.5, noise temperature resolution0.1℃Wind speed resolution0.1m/s
working voltageDC9～30VHumidity resolution0.1%RHPM2.5 resolution0.3ug/m³
 signal outputRS485Air pressure resolution0.1hPaPM10 resolution0.3ug/m³
wireless WIFI
Wireless band2.4GHz /5GHzMaximum standby60 People sourceIEEE 802.3at Standard PoE,12-53.5V DC
maximum rate1900Mbps management modelFIT AP mode, FAT AP modeoperating ambient temperature-30℃~+65℃
Antenna typeAll direction 360Coverage radius100 Meters levels of protectionIP65
Regional monitoring
 pixel200WInfrared irradiation distance100 米 working temperature-30℃~+65℃
 video compressionH.265/H.264/MJPEG sourceDC12V，  18W max working temperatureHumidity is less than 90%
Resolution and Frame RateSupport for a maximum of 19201080@30fpsVertical range-15°~90° levels of protectionIP66, complying with the GB / T17626.5 4 level standard
The number doubled16 倍 horizontal extent360°

The LED information release screen
Module pixel spacing3.125mmRefresh frequency3840Hz unctional parameterManual automatic control, temperature control fan
Displays the size400mm*800mmWiring power300WEnter the power supplyAC220V±10%
Machine size502mm*906mm*91mmmean power95W/ 台 working temperature-40℃ ～  +80℃
 luminance≥ 6000CD/m²communication interface4G + WIFI + network port cluster control名levels of protectionIP65
IP network sound column
power30WAudio sampling8KHz～44.1KHz，16bit working temperature-20℃ ~ +50℃
 protocolTCP/IP、SIP、UDP、ARP、 ICMP、IGMPAudio codingMP2/MP3/PCM/ADPCM sourceDC24V/2.75A
Line input sensitivity1VRms frequency response50Hz~20KHz

One key alarm
spacer.gifnetworking protocolTCP/IP、UDP、ARP、ICMP、 IGMP、HTTPWide Angle visibility140°~160° working temperature-20℃~ +60℃
Video resolutionQVGA/VGA/720P/1080Pfrequency response20Hz~18KHz power input12V/2A
 charging pile
 power rating7KW input voltageAC220V±15%levels of protection≥ IP54
Charging methodCommunication single chargePay wayBrush the card, QR code scanning code paymentoperating ambient temperature-20℃ ~ +50℃
Allocation standard standard configuration apolegamy
LED lighting○
Meteorological monitoring
○
Wireless WIFI
○
Region surveillance
○
LED information release screen
○
IP network speaker
○
One-key alarm
○
Charging pile
○
