● Module structure design
● Extruded with aluminum alloy,the surface is sprayed by outdoor special plastic powder after chromium treatment
● Special optical and thermal issue structure design,make sure the light works efficiently and reliable
● Optical  PC lens
● Light source:single chip  package LED




The product modelS171-1S171-2

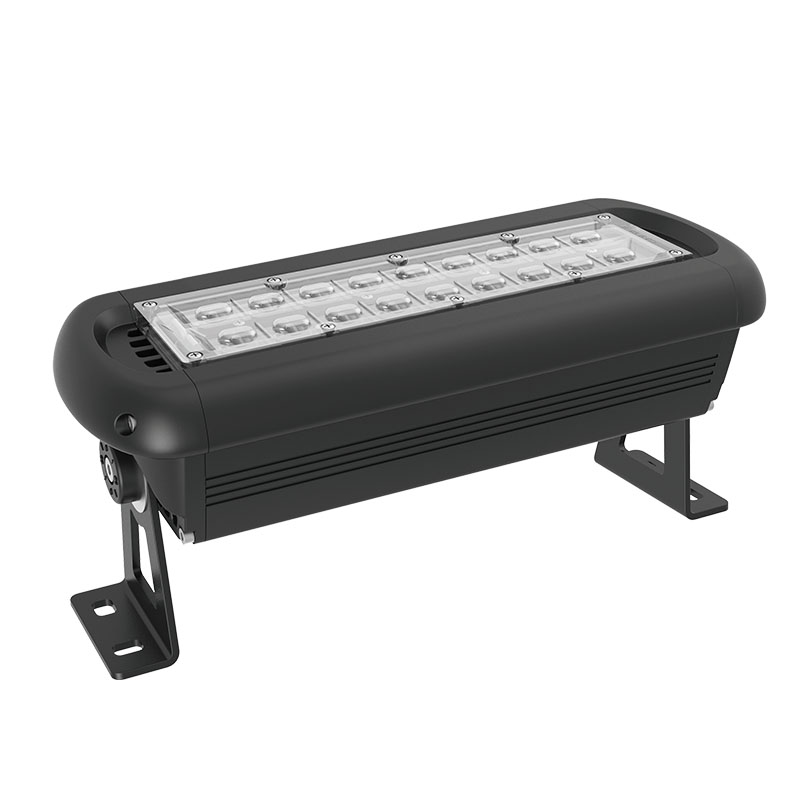

Product Picture



Type of the LED  high-power
LED Chip Quantity18pcs36pcs
Power30W-60W60W-120W
Input VoltageAC220V±20%AC220V±20%
Frequency Range50/60Hz50/60Hz
Power Factor>0.9>0.9
CT of the Light Source(k)3750~42503750~4250
Color Rendering Index≥ Ra70≥ Ra70
Luminous Efficiency(lm/w)115~105115~105
Lifetime>30000h>30000h
Operating Temperature-20℃~+50℃-20℃~+50℃
Operating Humidity10％~90％10％~90％
Protection GradeIP65IP65
Electric Shock Protection GradeI classI class
Weight(kg)34.57
Size of the Package(mm)183×393×194183×655×194
