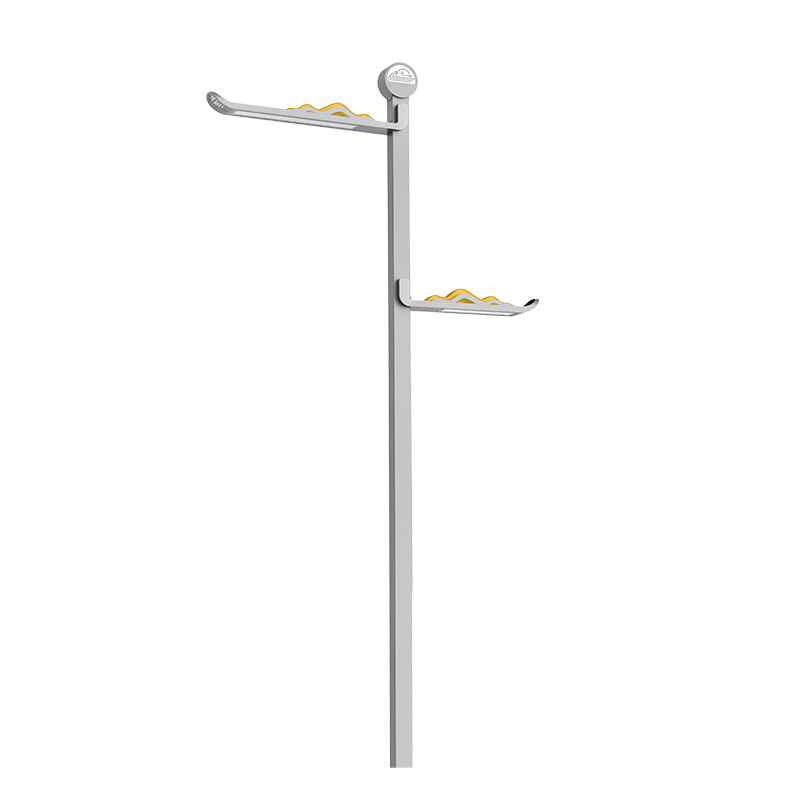

D224

‹

›

‹

  • D224
  • D224
  • D224
  • D224
  • D224

›

Power:150W/240W
Luminous(lm/w):≧110
Material: Steel and aluminum
Installation height: 10～12m
MESSAGR
CONTACT US

● New Chinese style of mountains and rivers element shape design, with independent patent
● The light is made of steel and aluminum, the surface is sprayed by outdoor special plastic powder

● Special optical and thermal issue structure design, make sure the light works efficiently and reliable

● The light source is using high luminous efficiency LED，with good luminous effect.





mounting heightcoefficient of correction
5 m4.000
6 m2.778
7 m2.041
8 m1.563
9 m1.235
10 m1.000
11 m0.826
12 m0.694
13 m0.592
14 m0.510
15 m0.444
16 m0.391


The product modelD224
Main Type of the LEDHigh light effect LED
 Main LED Chip Quantity288pcs/480pcs
Main Light Rated Power150W/240W
No.1 Auxiliary Type of the LEDIn the power
No.1 Auxiliary Light Rated Power20W
No.2 Auxiliary Type of the LEDIn the power
No.2 Auxiliary Light Rated Power15W
 Input VoltageAC220V±20％
Frequency Range50/60Hz
 Power Factor>0.9
CT of the Main Light Source(k)3750～4250
CT of the Auxiliary Light Source(k)3000
Color Rendering Index≥ Ra70
Luminous Efficiency(lm/w)≥ 110
Initial Luminous Flux(lm)16500/26400
Lifetime>30000h
Operating Temperature-20℃~+50℃
Operating Humidity10％~90％
 Protection GradeIP65
Installation Height10~12m
Order typeHeight (mm)Foundation No.Pole section size (mm)Pole material
D224A-112000B-06150×200/192×242steel
D224A-212000B-06150×200/192×242steel
D224A-312000B-06150×200/192×242steel
D224B-112000B-06150×200/192×242steel
D224B-212000B-06150×200/192×242steel
D224B-312000B-06150×200/192×242steel
