Power:100W/150W
Luminous(lm/w):≧120
Material: Steel and aluminum
Installation height: 8～12m
MESSAGR
CONTACT US

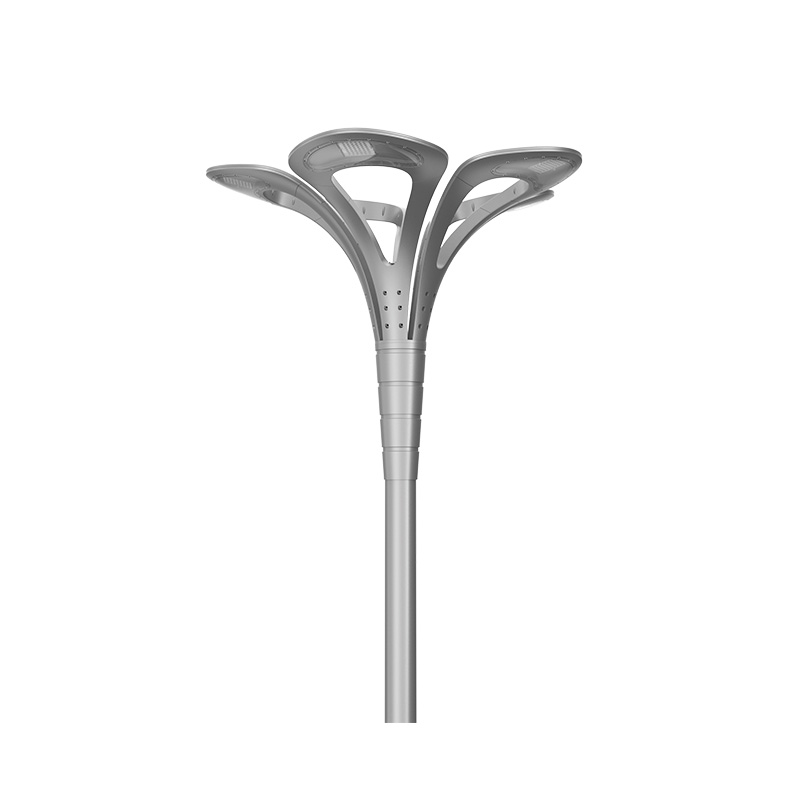

● Simple and fashion design

● Humanized design, convenient disassembly and assembly, safe and reliable
● The light is made of steel and aluminum, the surface is sprayed by outdoor special plastic powder
● The main light source is using high luminous efficiency LED






mounting heightcoefficient of correction
5 m4.000
6 m2.778
7 m2.041
8 m1.563
9 m1.235
10 m1.000
11 m0.826
12 m0.694
13 m0.592
14 m0.510
15 m0.444
16 m0.391




The product modelD2219
Type of the LEDHigh light effect LED
Rated Power100W/150W
Input VoltageAC220V±20％
Frequency Range50/60Hz
Power Factor>0.9
CT of the Light Source(k)3750～4250
Color Rendering Index≥ Ra70
Luminous Efficiency(lm/w)≥ 120
Lifetime>30000h
Operating Temperature-20℃~+50℃
Operating Humidity10％~90％
Protection GradeIP65
Installation Height8~12m
Order typeHeight (mm)Foundation No.Pole section size (mm)Pole material
D2219-17000A895x170/264x265 steel
D2219-27000A8170x215/264x265 steel
D2219-37000A8170x215/264x265 steel
D2219-49000B-06Φ219 steel
