Power:100W/150W
Luminous(lm/w):≧120
Material: Steel and aluminum
Installation height: 10～13m
MESSAGR
CONTACT US

● Simple and fashion design, with independent patent
● The light is made of steel and aluminum, the surface is sprayed by outdoor special plastic powder
● Special optical and thermal issue structure design, make sure the light works efficiently and reliable
● The light source is using high luminous efficiency LED，with good luminous effect

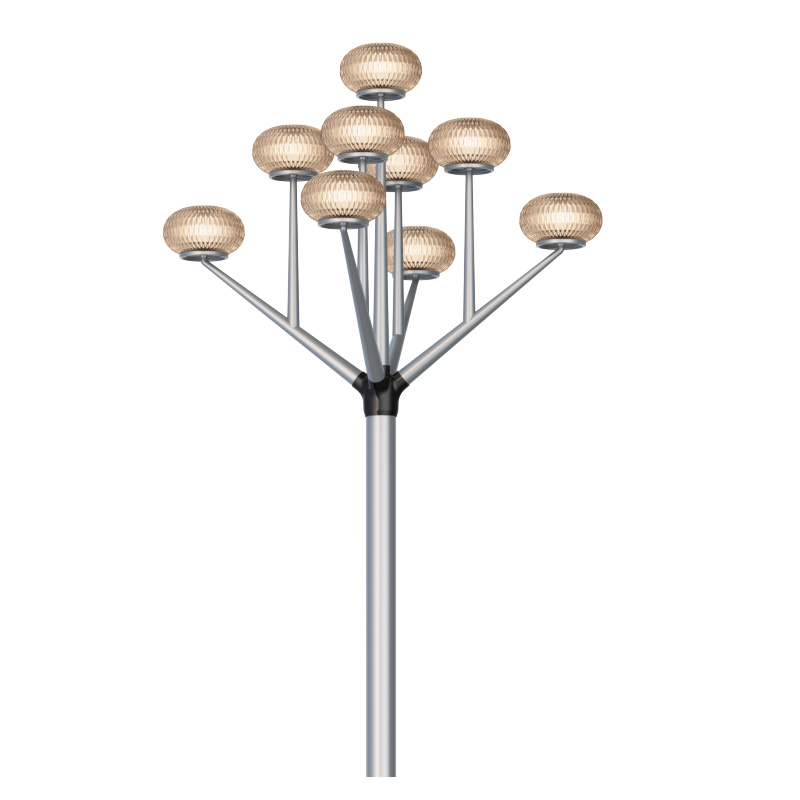

The product modelD2217
Main Type of the LEDHigh light effect LED
Main Light Rated Power100W/150W
Auxiliary Type of the LEDHigh light effect LED
Auxiliary Light Rated Power30W
Input VoltageAC220V±20％
Frequency Range50/60Hz
Power Factor>0.9
CT of the Main Light Source(k)3750~4250
CT of the Auxiliary Light Source(k)3750~4250
Color Rendering Index≥ Ra70
Luminous Efficiency(lm/w)≥ 120
Lifetime>30000h
Operating Temperature-20℃~+50℃
Operating Humidity10％~90％
Protection GradeIP65
Installation Height10~13m
Order typeHeight (mm)Foundation No. Pole section size (mm)Pole material
D2217A-113000B-19Φ219/325 steel
D2217A-213000B-19Φ219/341 steel
D2217B13000B-19Φ219/325 steel
D2217C12000Y-13390x390 steel
