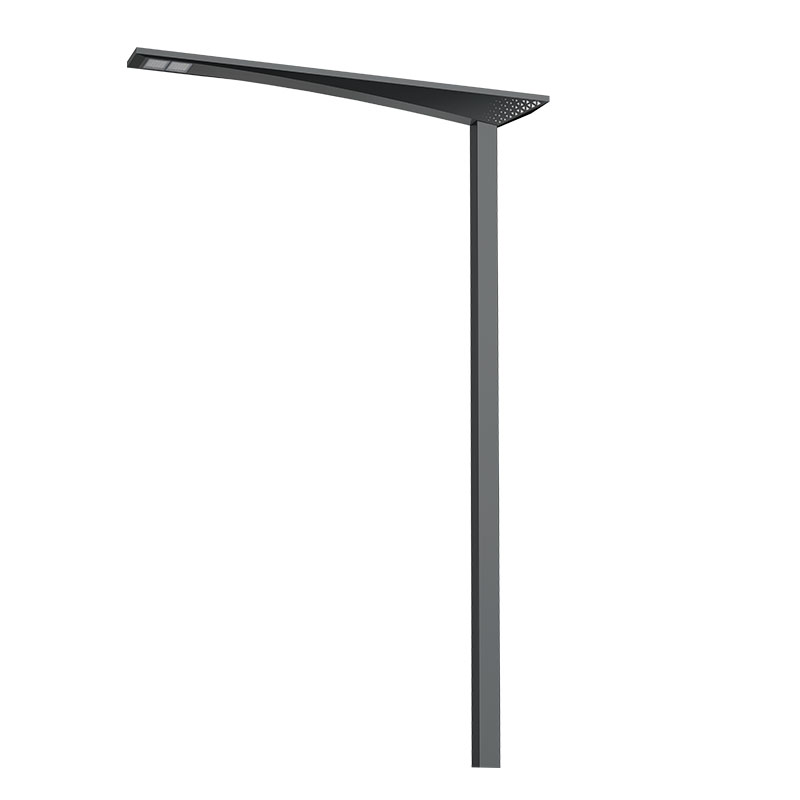

D2212B

Power:100W/200W
Material: High quality steel
Installation height: 10~12m
MESSAGR
CONTACT US

● Simple and fashion design, with independent patent

● The light is using high quality steel, the surface is sprayed by outdoor special plastic powder after hot galvanized
● Special optical and thermal issue structure design, make sure the light works
efficiently and reliable
● The light source is using high luminous efficiency LED,with good luminous effect.





mounting heightcoefficient of correction
5 m4.000
6 m2.778
7 m2.041
8 m1.563
9 m1.235
10 m1.000
11 m0.826
12 m0.694
13 m0.592
14 m0.510
15 m0.444
16 m0.391


The product modelD2212B
Main Type of the LEDHigh light effect LED
Main Light Rated Power100W/200W
Auxiliary Type of the LEDIn the power
Auxiliary Light Rated Power10W
Input VoltageAC220V±20%
Frequency Range50/60Hz
Power Factor>0.9
CT of the Main Light Source(k)3750~4250
CT of the Auxiliary Light Source ice blue
Color Rendering Index≥ Ra70
Lifetime>30000h
Operating Temperature-20℃~+50℃
Operating Humidity10%~90%
Protection GradeIP65
Installation Height10~12m
Order typeHeight (mm)Foundation No.Pole section size (mm)Pole material
D2212A-112000B-06Φ85/229 steel
D2212A-212000B-06Φ85/229 steel
D2212B-112000B-06150x150/200x200 steel
D2212B-212000B-06150x150/200x200 steel
