Power:80W~200W
Luminous(lm/w):≧120
Material: High quality steel
Installation height: 10～15m
MESSAGR
CONTACT US

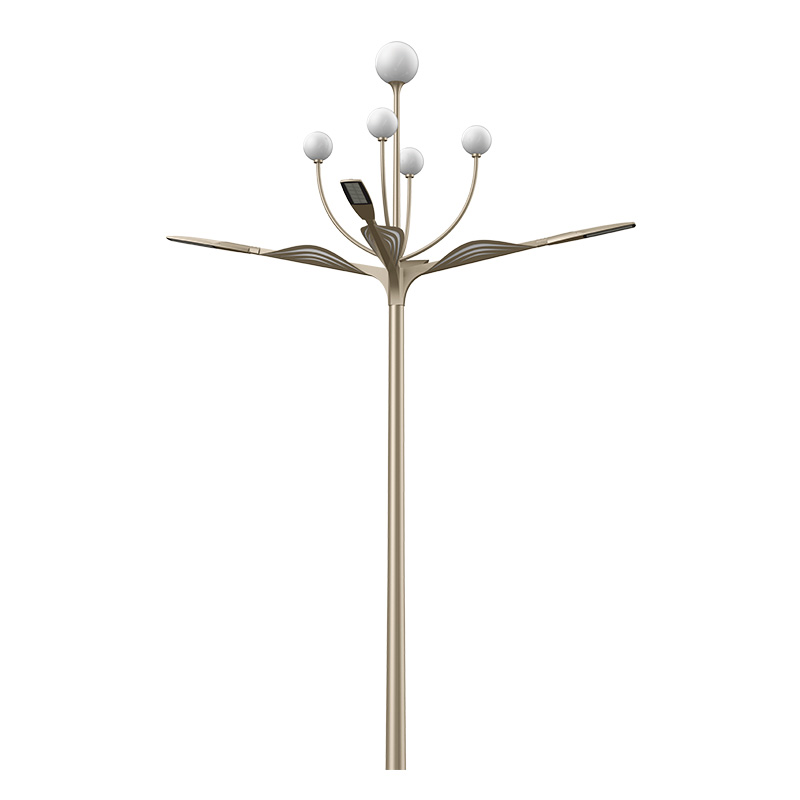

● Design like “Butterfly”,with independent patent
● The light is using high quality steel, the surface is sprayed by outdoor special plastic powder after hot galvanized
● Special optical and thermal issue structure design, make sure the light works efficiently and reliable
● The light source is using high luminous efficiency LED，with good luminous effect.





mounting heightcoefficient of correction
5 m4.000
6 m2.778
7 m2.041
8 m1.563
9 m1.235
10 m1.000
11 m0.826
12 m0.694
13 m0.592
14 m0.510
15 m0.444
16 m0.391
The product modelD2211
Main Type of the LEDHigh light effect LED
 Main Light Rated Power80W~200W
No.1 Auxiliary Type of the LEDIn the power
No.1 Auxiliary Light Rated Power15W
 No.2 Auxiliary Type of the LEDIn the power
 No.2 Auxiliary Light Rated Power15W
 Input VoltageAC220V±20％
 Frequency Range50/60Hz
 Power Factor>0.9
CT of the Main Light Source(k)3750～4250
No.1 CT of the Auxiliary Light Source yellow yellow
 No.2 CT of the Auxiliary Light Source(k)3000
Color Rendering Index≥ Ra70
Luminous Efficiency(lm/w)≥ 120
Lifetime>30000h
Operating Temperature-20℃~+50℃
Operating Humidity10％~90％
Protection GradeIP65
 Installation Height10~15m
Order type Height (mm)Foundation No.Pole section size (mm)Pole material
D2211-112000B-06Φ85/229steel
D2211-212000B-06Φ85/229steel
D2211-312000B-06Φ85/229steel
D2211-413500B-06Φ120/252steel
