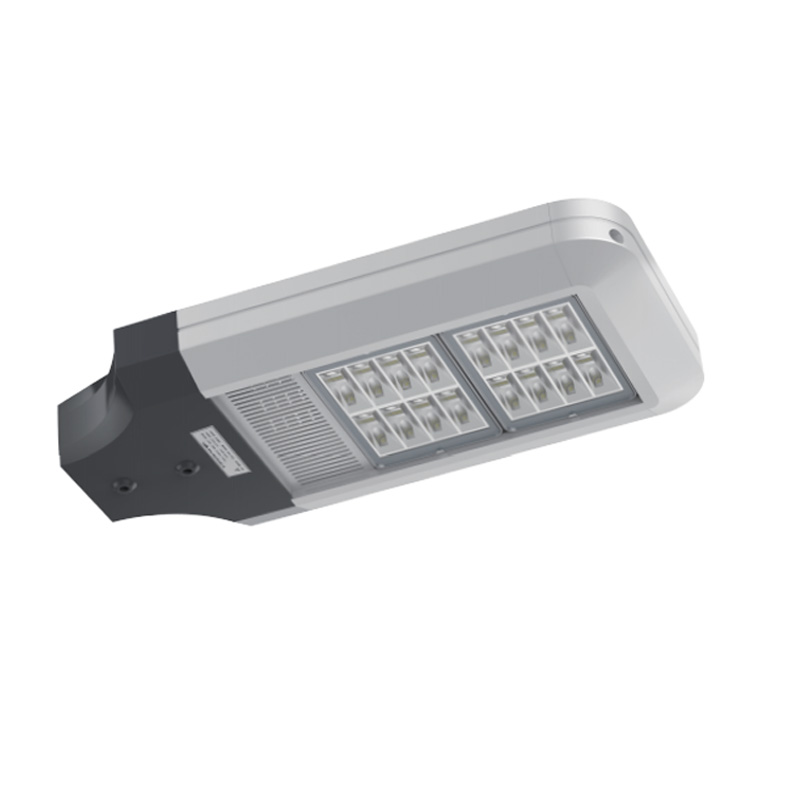

D193-MG100

Power:100W/200W/300W
Luminous(lm/w):≧130
Material: Aluminum alloy die-casting
Installation height: 5~12m


MESSAGR
CONTACT US

● Simple and fashion design , with independent patent

● The lamp body is made of aluminum alloy die casting, the surface is sprayed by outdoor special plastic powder after passivating treatment

● Special optical and thermal issue structure design,make sure the light works efficiently and reliable

● The light source can be selected with high power 5050LED,medium power 3030LED

● The ultra - white tempered glass is not easy to be contaminated with dust and oil

● Light source cavity configuration breathing apparatus, make the cavity pressure

balance in vivo and in vitro, eliminate cavity in the fog and condensation, ensure the

service life of the output and the LED lamps and lanterns of luminous flux





The product modelD193-MG100-50
Type of the LED high-power 5050
 Rated Power100W/200W/300W
Input VoltageAC220V±20%
Frequency Range50/60Hz
Power Factor>0.9
CT of the Light Source(k)3750~4250
Color Rendering Index≥ Ra70
Luminous Efficiency(lm/w)≥ 130
Initial Luminous Flux(lm)13000/26000/39000
Lifetime>30000h
Operating Temperature-20℃~+50℃
Operating Humidity10%~90%
Protection GradeIP65
Electric Shock Protection GradeIclass
Diameter of the Suitable TubeΦ60mm
Installation Height5~12m
The product modelD193-MG100-30
Type of the LEDIn the power 3030
Rated Power100W/200W/300W
Input VoltageAC220V±20%
Frequency Range50/60Hz
Power Factor>0.9
CT of the Light Source(k)3750~4250
Color Rendering Index≥ Ra70
Luminous Efficiency(lm/w)≥ 120
Initial Luminous Flux(lm)12000/24000/36000
Lifetime>30000h
Operating Temperature-20℃~+50℃
Operating Humidity10%~90%
Protection GradeIP65
Electric Shock Protection GradeI class
Diameter of the Suitable TubeΦ60mm
Installation Height5~12m
