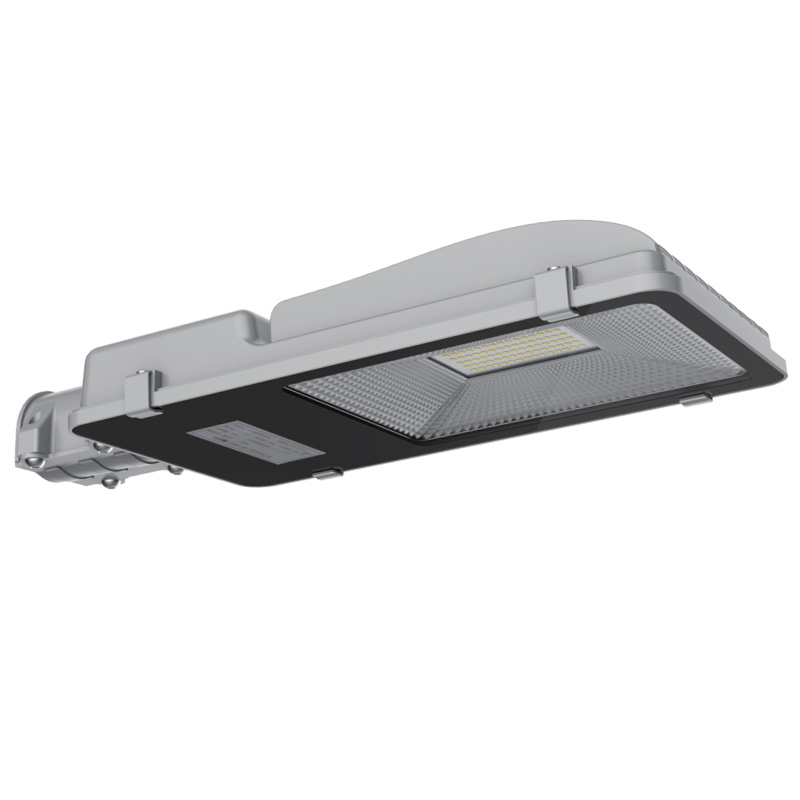

D1301

‹

›

‹

  • D1301

›

Power:40W/50W/60W/80W
Luminous(lm/w):≧120/115/110/135
Material: Aluminum alloy die-casting
MESSAGR
CONTACT US

●  Aluminum alloy die-casting, the surface is sprayed by outdoor special plastic powder

●  Special optical and thermal issue structure design,make sure the light works efficiently and reliable

●  Equipped with diffuse optical reflector, soft and comfortable light

●  Precision reflector, the light is soft and comfortable





mounting heightcoefficient of correction
5 m4.000
6 m2.778
7 m2.041
8 m1.563
9 m1.235
10 m1.000
11 m0.826
12 m0.694
13 m0.592
14 m0.510
15 m0.444
16 m0.391
The product modelD1301
Type of the LEDIn the power
LED Chip Quantity75pcs/75pcs/75pcs/96pcs
Rated Power40W/50W/60W/80W
Input VoltageAC220V±20％
Frequency Range50/60Hz
Power Factor>0.9
CT of the Light Source(k)3750~4250
Initial Luminous Flux(lm)4800/5800/6600/10800
Luminous Efficiency(lm/w)≥ 120/115/110/135
Color Rendering Index≥ Ra70
Lifetime>30000h
Operating Temperature-20℃~+50℃
Operating Humidity10％~90％
Protection GradeIP65
Electric Shock Protection GradeI class
Weight(kg)3.84
Size of the Package(mm)540×250×200（2 The outfit）
The product modelD1301
Main Type of the LEDYang energy from the power supply DC12V
Power system20W
CT of the Light Source(k)3750~4250
Single crystal silicon photovoltaic module60W
Lithium battery capacity400Wh
Lights on time

In the first 4 hours of full power, and after 4 hours,

the system automatically reduces the power operation according to the power quantity

Can support continuous rain days3~7 day
Single crystal silicon pv module life20 year
Lithium battery life8~10 year
Operating Temperature-20℃~+50℃
Operating Humidity10%-90%
Order typeHeight (mm)Pole material
D1301-G5417000 steel
D1301-G5217000 steel
D1301-G7657000 steel
