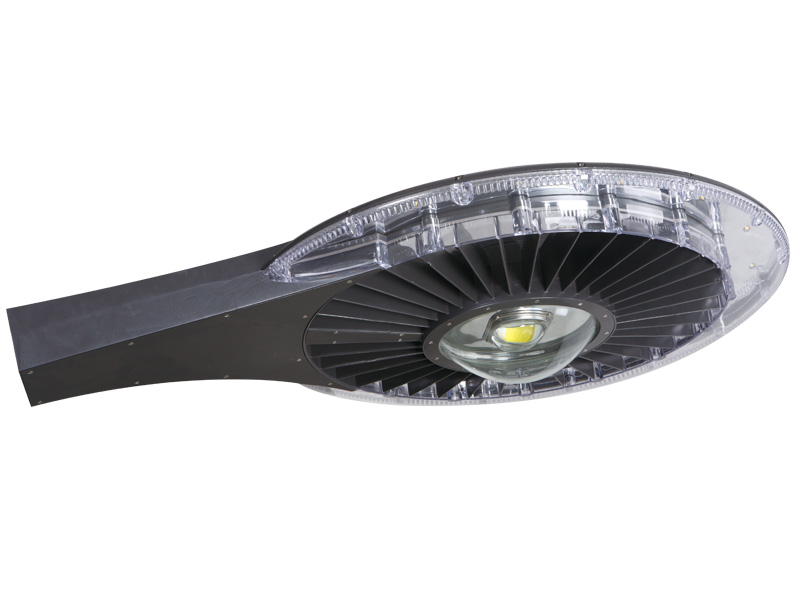

D122

‹

›

‹

  • D122
  • D122
  • D122
  • D122

›

Power:160W/200W
Luminous(lm/w):≧90
Material: Aluminum alloy die-casting
Installation height: 8～12m
MESSAGR
CONTACT US

●  Simple and fashion design, with independent patent

●  Aluminum alloy die-casting, the surface is sprayed by outdoor special plastic powder

●  Special optical and thermal issue structure design, make sure the light works efficiently and reliable

●  The light source is multiple chip package LED





 mounting height coefficient of correction
5 m4.000
6 m2.778
7 m2.041
8 m1.563
9 m1.235
10 m1.000
11 m0.826
12 m0.694
13 m0.592
14 m0.510
15 m0.444
16 m0.391


The product modelD122
Type of the LEDCOB
LED Chip Quantity1/2 pcs
Rated Power160W/200W
 Input VoltageAC220V±20%
 Frequency Range50/60Hz
Power Factor>0.9
CT of the Light Source(k)3750~4250
 Color Rendering Index≥ Ra70
Luminous Efficiency(lm/w)≥ 90
 Initial Luminous Flux(lm)14400/18000
Lifetime>30000h
Operating Temperature-20℃~+50℃
Operating Humidity10％~90％
 Protection GradeIP65
Electric Shock Protection GradeIclass
Diameter of the Suitable TubeΦ75mm
 Installation Height8~12m
Weight(kg)21
Size of the Package(mm)1200×860×210
 modelOrder typepower(w)have a lot of social connections L (m)height of light  (m)separation distance(m)angle of elevationAverage illuminanceMinimum illumination (Lx))Maximum illumination (Lx)uniformity of illuminanceMinimum photoDegree / maximumilluminance
D12216016103513°2213340.590.39
20024123613°1913280.690.46
Order typeHeight (mm)Foundation No.Pole section size (mm)Pole material
D122-410000B-06100×150 steel
D122-510000B-06150×240 steel
D122-610000B-06350×350 steel
D122-811500Y-04Φ219 steel
D122-1214000Y-04160 / 320 steel
