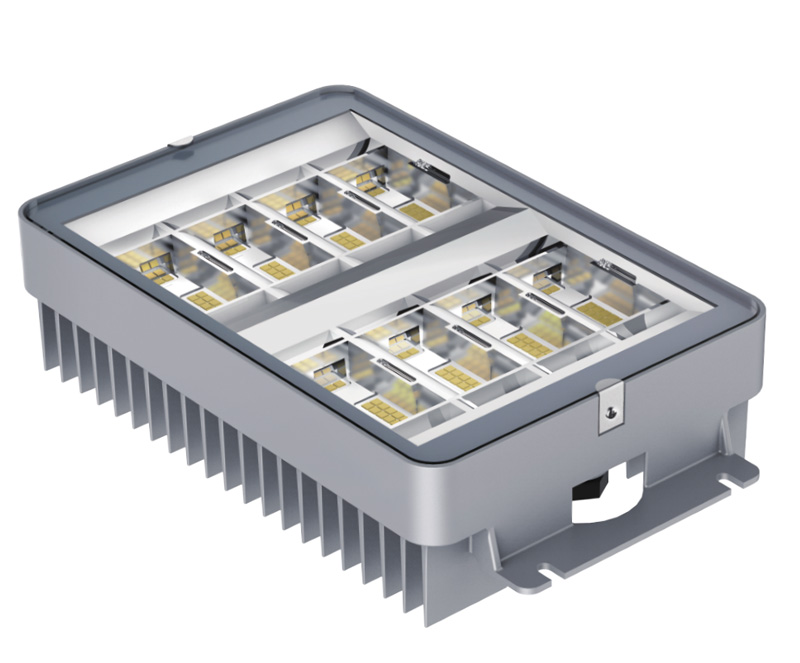

MD100

Power:54W/72W/90W
Luminous(lm/w):≧150/140/130
Material:Aluminum alloy die-casting
Size of the package(mm): 255×148×70
MESSAGR
CONTACT US

● The radiator is aluminum alloy die-casting , and the surface is  sprayed by special outdoor plastic powder after passivating treatment
● Extruded with aluminum alloy,the surface is sprayed by outdoor special plastic powder after chromium treatment
● Equip high diffuse reflection precision optical reflector.
● The ultra - white tempered glass is not easy to be contaminated with dust and oil
● Light source cavity configuration breathing apparatus, make the cavity pressure balance in vivo and in vitro, eliminate cavity in the fog and condensation, ensure the service life of the output and the LED lamps and lanterns of luminous flux.





mounting heightcoefficient of correction
5 m4.000
6 m2.778
7 m2.041
8 m1.563
9 m1.235
10 m1.000
11 m0.826
12 m0.694
13 m0.592
14 m0.510
15 m0.444
16 m0.391
Technical parameter
The product modelMD100
Type of the LEDIn the power 3030
LED Chip Quantity128pcs
Module Power54W/72W/90W
CT of the Light Source(k)3750~4250
Initial Luminous Flux(lm)8100/10080/11700
Module Luminous Efficiency(lm/w)≥ 150/140/130
Color Rendering Index≥ Ra70
Lifetime>30000h
Operating Temperature-20℃~+50℃
Operating Humidity10%~90%
Protection GradeIP67
Weight(kg)1.8
Size of the Package(mm)255×148×70

LED modules.jpg
