MPL100

Power:90W
Luminous(lm/w):≧155 /≧145
Material:Aluminum alloy die-casting
Size of the package(mm): 255×148×50
MESSAGR
CONTACT US

● The radiator is aluminum alloy die-casting , and the surface is  sprayed by special outdoor plastic powder after passivating treatment
● Extruded with aluminum alloy,the surface is sprayed by outdoor special plastic powder after chromium treatment
● The light source can be selected with high-power 5050LED,medium power 3030LED
● The ultra - white tempered glass is not easy to be contaminated with dust and oil
● Light source cavity configuration breathing apparatus, make the cavity pressure balance in vivo and in vitro, eliminate cavity in the fog and condensation, ensure the service life of the output and the LED lamps and lanterns of luminous flux









The product modelMPL100-50MPL100-30
Type of the LED high-power 5050In the power3030
LED Chip Quantity48pcs128pcs
Module Power90W90W
CT of the Light Source(k)3750~42503750~4250
Initial Luminous Flux(lm)1395013050
Module Luminous Efficiency(lm/w)≥ 155≥ 145
Color Rendering Index≥ Ra70≥ Ra70
Lifetime>30000h>30000h
Operating Temperature-20℃~+50℃-20℃~+50℃
Operating Humidity10%~90%10%~90%
Protection GradeIP67IP67
Weight(kg)1.141.14
Size of the Package(mm)255×148×50255×148×50

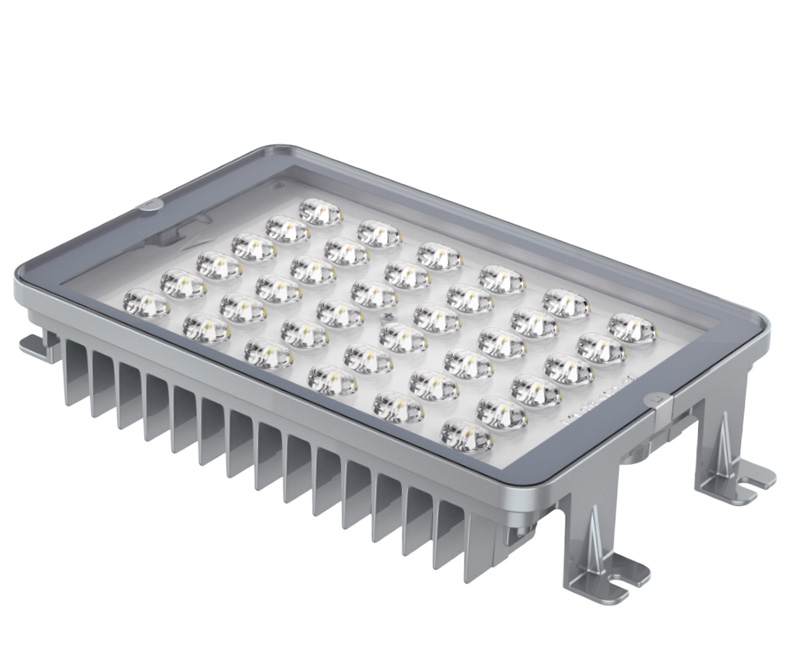

LED modules.jpg
