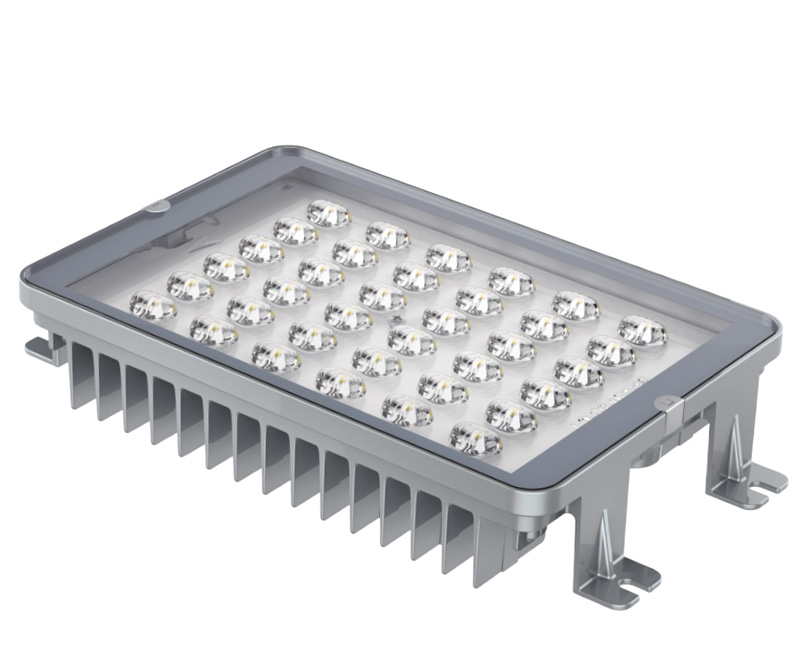

MH50

Power:45W
Luminous(lm/w):≧185
Material:Aluminum alloy die-casting
Size of the package(mm): 255×148×50
MESSAGR
CONTACT US

● The radiator is aluminum alloy die-casting , and the surface is  sprayed by special outdoor plastic powder after passivating treatment
● Extruded with aluminum alloy,the surface is sprayed by outdoor special plastic powder after chromium treatment
● Light source: high-power 7070LED, super high light efficiency, significant energy saving
● The ultra - white tempered glass is not easy to be contaminated with dust and oil
● Light source cavity configuration breathing apparatus, make the cavity pressure balance in vivo and in vitro, eliminate cavity in the fog and condensation, ensure the service life of the output and the LED lamps and lanterns of luminous flux







mounting heightcoefficient of correction
5 m4.000
6 m2.778
7 m2.041
8 m1.563
9 m1.235
10 m1.000
11 m0.826
12 m0.694
13 m0.592
14 m0.510
15 m0.444
16 m0.391
The product modelMH50
Type of the LED high-power7070
LED Chip Quantity48pcs
Module Power45W
CT of the Light Source(k)3750~4250
Initial Luminous Flux(lm)8300
Module Luminous Efficiency(lm/w)≥ 185
Color Rendering Index≥ Ra70
Lifetime>30000h
Operating Temperature-20℃~+50℃
Operating Humidity10%~90%
Protection GradeIP67
Weight(kg)1.14
Size of the Package(mm)255×148×50
