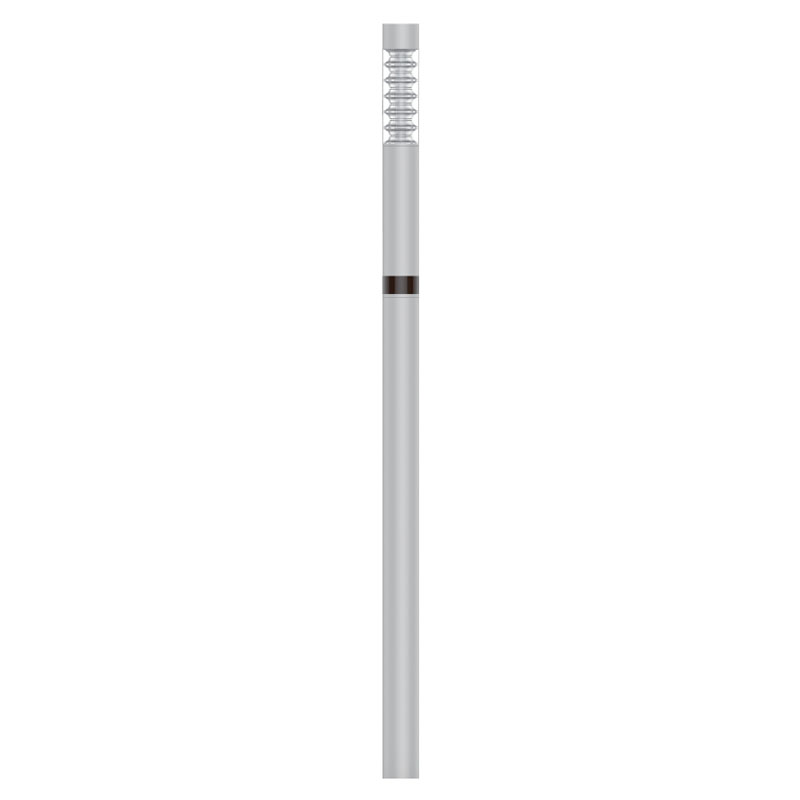

J192

‹

›

‹

  • J192

›

Power:30W/50W
Material: Optical grade acrylic
Installation height: 3.2m/3.6m
MESSAGR
CONTACT US

●  Simple and fashion design, with independent patent

●  Humanized design, convenient disassembly and assembly, safe and reliable

●  The transparent cover adopts optical grade acrylic material, which is resistant to high temperature and aging

●  The light source is using high luminous efficiency LED

●  Extruded with aluminum alloy,the surface is sprayed by outdoor special plastic powder




The product modelJ192-8J192-9J192-10J192-11
Main Type of the LEDIn the powerIn the powerIn the powerIn the power
Main Light Rated Power30W50W30W50W
Auxiliary Type of the LED----------------In the powerIn the power
Auxiliary Light Rated Power----------------5W5W
Input VoltageAC220V±20％AC220V±20％AC220V±20％AC220V±20％
Frequency Range50/60Hz50/60Hz50/60Hz50/60Hz
Power Factor>0.9>0.9>0.9>0.9
CT of the Main Light Source(k)3750~42503750~42503750~42503750~4250
Wavelength of the Auxiliary Light Source----------------450-465nm450-465nm
Color Rendering Index≥ Ra70≥ Ra70≥ Ra70≥ Ra70
Lifetime>30000h>30000h>30000h>30000h
Operating Temperature-20℃~+50℃-20℃~+50℃-20℃~+50℃-20℃~+50℃
Operating Humidity10％~90％10％~90％10％~90％10％~90％
Protection GradeIP65IP65IP65IP65
Electric Shock Protection GradeI classI classI classI class
Order typeHeight (mm) Foundation No. Pole section size (mm)Pole material
J192-83200B-12Φ127aluminium alloy
J192-93200B-12Φ127aluminium alloy
J192-103600B-01Φ155aluminium alloy
J192-113600B-01Φ155aluminium alloy
