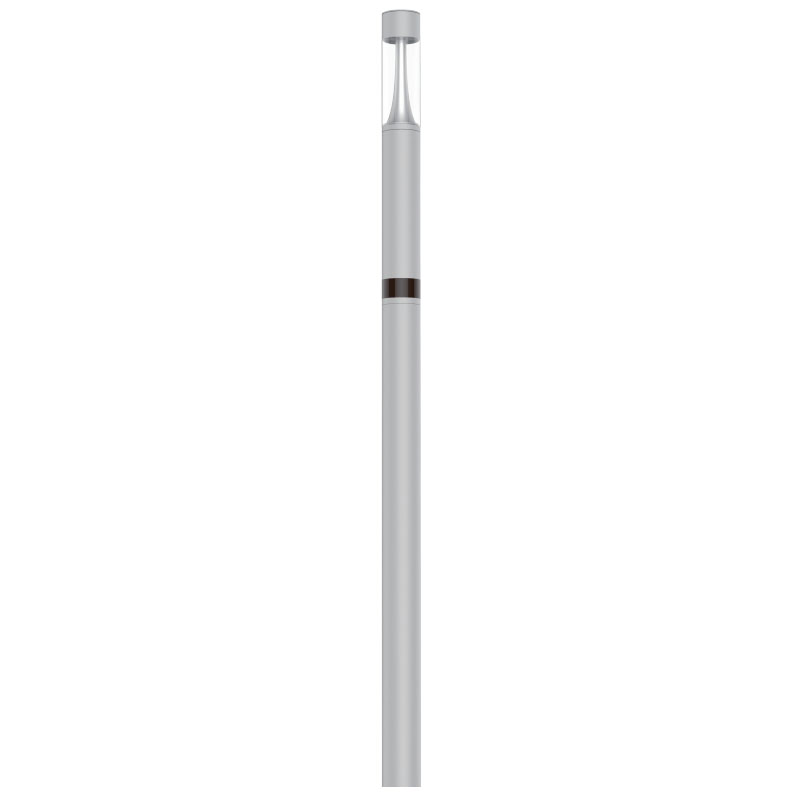

J183

‹

›

‹

  • J183
  • J183
  • J183

›

Power:30W/20W
Material: Optical grade acrylic
Installation height: 4m/3.2m
MESSAGR
CONTACT US

●  Simple and fashion design, with independent patent

●  Humanized design, convenient disassembly and assembly, safe and reliable

●  The transparent cover adopts optical grade acrylic material, which is resistant to high temperature and aging

●  The light source is using high luminous efficiency LED

●  Extruded with aluminum alloy,the surface is sprayed by outdoor special plastic powder




The product modelJ183-1J183-2J183-3
Main Type of the LEDIn the powerIn the powerIn the power
Main Light Rated Power30W30W20W
Auxiliary Type of the LEDIn the power----------------
Auxiliary Light Rated Power5W----------------
Input VoltageAC220V±20％AC220V±20％AC220V±20％
Frequency Range50/60Hz50/60Hz50/60Hz
Power Factor>0.9>0.9>0.9
CT of the Main Light Source(k)3750~42503750~42503750~4250
Wavelength of the Auxiliary Light Source450-465nm----------------
Color Rendering Index≥ Ra70≥ Ra70≥ Ra70
Lifetime>30000h>30000h>30000h
Operating Temperature-20℃~+50℃-20℃~+50℃-20℃~+50℃
Operating Humidity10％~90％10％~90％10％~90％
Protection GradeIP65IP65IP65
Electric Shock Protection GradeI classI classI class
Order typeHeight (mm)Foundation No.Pole section size (mm)Pole material
J183-14000B-18Φ180aluminium alloy
J183-24000B-18Φ180aluminium alloy
J183-33200B-12Φ127aluminium alloy
