J203-Jinan Sanxing Lighting Technology Co.,LTD

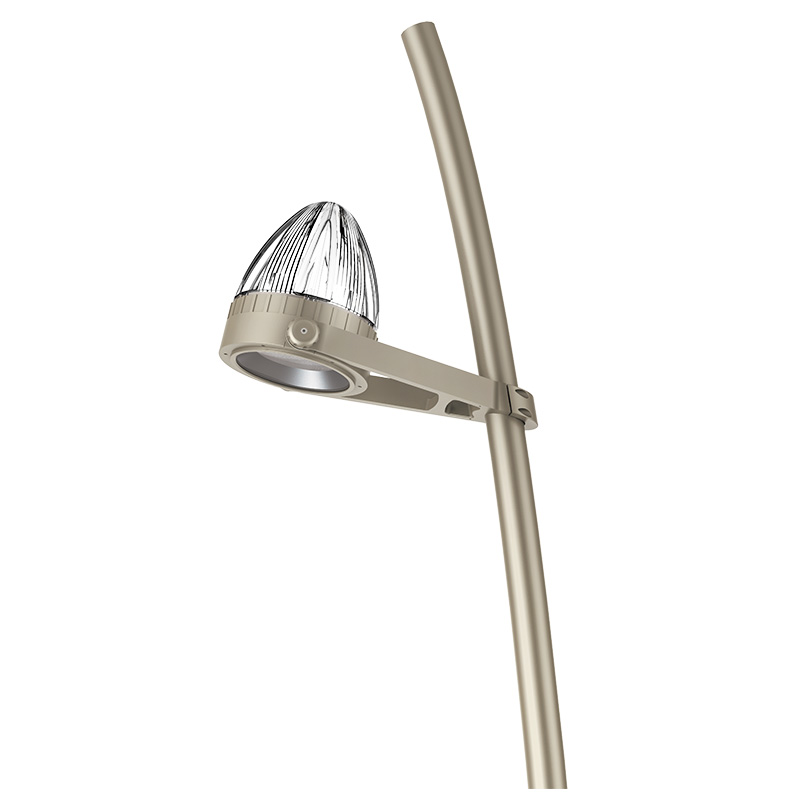

J203

Power:25W
Luminous(lm/w):40
Material: High pressure die-casting aluminum
Installation height: 3～6m

MESSAGR

● Simple and fashion design , with independent patent

● Humanized design , convenient disassembly and assembly, safe and reliable

● High pressure die-casting aluminum , impact resistance and long life

● Special optical design ,with high efficiency、low glare reflector, the light is soft and comfortable

The product model	J203
Main Type of the LED	In the power
Auxiliary Type of the LED	high-power
LED Chip Quantity	31pcs
Rated Power	25W
Input Voltage	AC220V±20％
Frequency Range	50/60Hz
Power Factor	>0.9
CT of the Main Light Source(k)	3750~4250
Wavelength of the Auxiliary Light Source	585-595nm
Color Rendering Index	≥ Ra70
Main Light Luminous Flux(lm)	1000
Lifetime	>30000h
Operating Temperature	-20℃~+50℃
Operating Humidity	10％~90％
Protection Grade	IP65
Electric Shock Protection Grade	I class
Diameter of the suitable tube	Φ75mm
Installation Height	3~6m
Weight(kg)	8.2
Size of the Package(mm)	404x975x372（2 The outfit）


