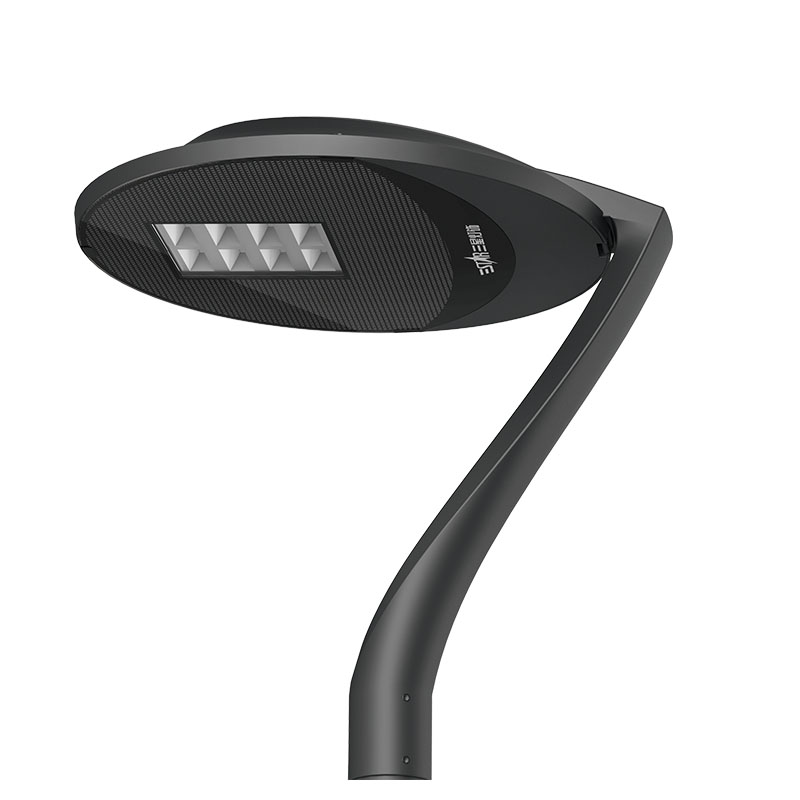

J201A

‹

›

‹

  • J201A
  • J201A
  • J201A
  • J201A
  • J201A
  • J201A
  • J201A

›

Power:18W/36W
Luminous(lm/w):106/100
Material: High pressure die-casting aluminum
Installation height: 3～4m
MESSAGR
CONTACT US

●  Simple and fashion design, with independent patent

●  High pressure die-casting aluminum,the surface is sprayed by outdoor special plastic powder

●  Humanized design, convenient disassembly and assembly, safe and reliable

●  The ultra - white tempered glass is not easy to be contaminated with dust and oil

●  The reflector is special optical design, with high reflection efficiency and low glare

●  The light source is using high luminous efficiency LED






mounting height coefficient of correction
5 m0.640
6 m0.444
7 m0.327
8 m0.250
9 m0.198
10 m0.160
11 m0.132
12 m0.111
13 m0.095
14 m0.082
15 m0.071
16 m0.063


The product modelJ201AJ201B
Type of the LEDIn the powerIn the power
LED Chip Quantity40pcs40pcs
Rated Power18W/36W18W/36W
Input VoltageAC220V±20％AC220V±20％
Frequency Range50/60Hz50/60Hz
Power Factor>0.9>0.9
CT of the Light Source(k)3750~42503750~4250
Color Rendering Index≥ Ra70≥ Ra70
Initial Luminous Flux(lm)1900/36001900/3600
Lifetime>30000h>30000h
Operating Temperature-20℃~+50℃-20℃~+50℃
Operating Humidity10％~90％10％~90％
Protection GradeIP65IP65
Electric Shock Protection GradeI classI class
Diameter of the Suitable TubeΦ60mm---
Installation Height3~4m3~6m
Weight(kg)10.78.2
Size of the Package(mm)585×608×407（2 The outfit）585×700×265（2 The outfit）
Order typeHeight (mm)Foundation No. Pole section size (mm)Pole material
J201A3600B-01Φ75/111steel
J201B-14000B-01Φ102steel
J201B-26000B-01Φ102/114steel
J201B-36000B-01Φ102/114steel
