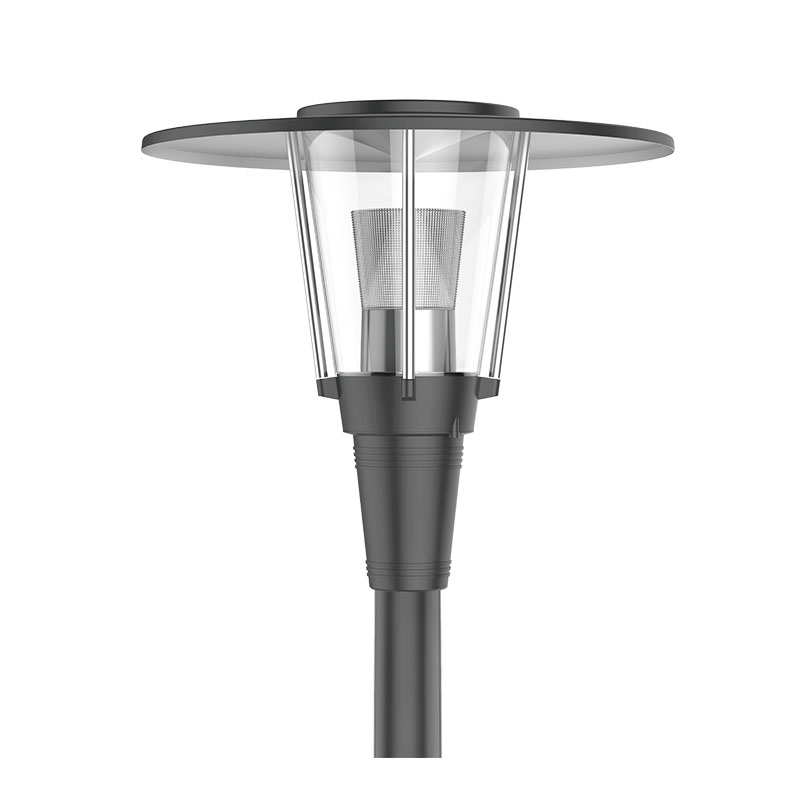

J193

‹

›

‹

  • J193

›

Power:20W/40W
Material: High pressure die-casting aluminum
Installation height: 3～5m
MESSAGR
CONTACT US

●  Simple and fashion design

●  High pressure die-casting aluminum, the surface is sprayed by outdoor special plastic powder

●  A fusion of Unique design of soft light reflection technology and prism refraction technology

●  PC, transparent lampshade





The product modelJ193
Type of the LEDIn the power
Rated Power20W/40W
Input VoltageAC220V±20％
Frequency Range50/60Hz
Power Factor>0.9
CT of the Light Source(k)3000
Color Rendering Index≥ Ra70
Lifetime>30000h
Operating Temperature-20℃~+50℃
Operating Humidity10％~90％
Protection GradeIP65
Electric Shock Protection GradeI class
Diameter of the Suitable TubeΦ89mm
Installation Height3~5m
Weight(kg)5.8
Size of the Package(mm)300×640×660
Order typeHeight (mm)Foundation No. Pole section size (mm)Pole material
J193-G0103300B-01Φ75steel
J193-G1103300B-01Φ75/114steel
J193-G0203500B-01Φ89steel
J193-G1303900B-01Φ89/140steel
J193-G1403900B-01Φ89/140aluminium alloy
