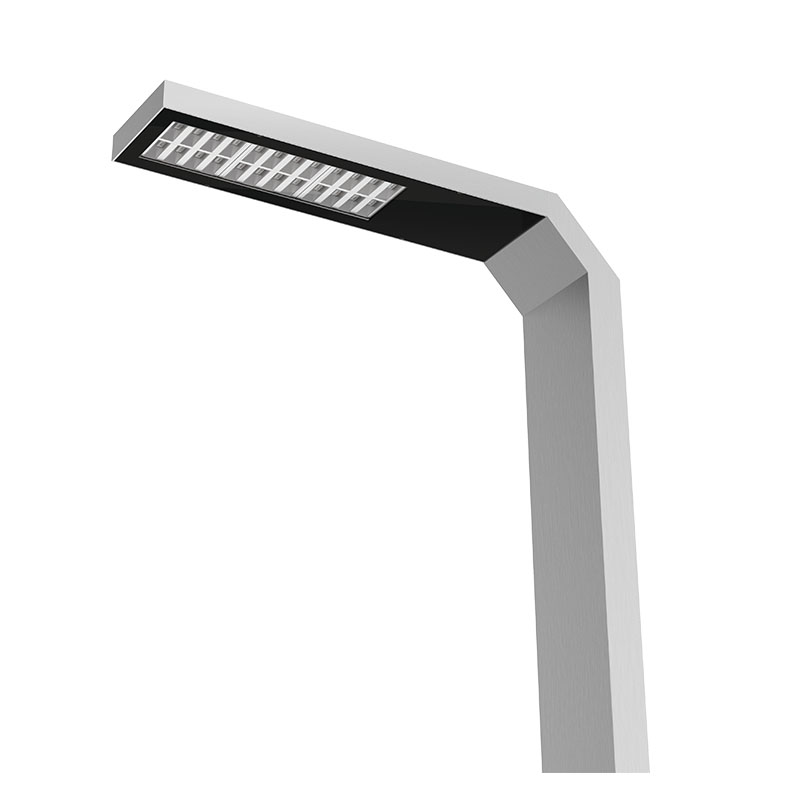

J191A

‹

›

‹

  • J191A
  • J191A
  • J191A
  • J191A
  • J191A
  • J191A
  • J191A

›

Power:18W/36W
Luminous(lm/w):111/106
Material: Aluminum alloy
Installation height: 4～6m
MESSAGR
CONTACT US

●  Simple and fashion design, with independent patent

●  Aluminum alloy,the surface is sprayed by outdoor special plastic powder

●  Humanized design, convenient disassembly and assembly, safe and reliable

●  The ultra - white tempered glass is not easy to be contaminated with dust and oil

●  Special optical and thermal issue structure design, make sure the light works efficiently and reliable

●  The light source is using high luminous efficiency LED







mounting heightcoefficient of correction
5 m0.640
6 m0.444
7 m0.327
8 m0.250
9 m0.198
10 m0.160
11 m0.132
12 m0.111
13 m0.095
14 m0.082
15 m0.071
16 m0.063
The product modelJ191AJ191B
Type of the LEDIn the powerIn the power
LED Chip Quantity120pcs120pcs
Rated Power18W/36W18W/36W
Input VoltageAC220V±20％AC220V±20％
Frequency Range50/60Hz50/60Hz
Power Factor>0.9>0.9
CT of the Light Source(k)3750~42503750~4250
Color Rendering Index≥ Ra70≥ Ra70
Initial Luminous Flux(lm)2000/38002000/3800
Lifetime>30000h>30000h
Operating Temperature-20℃~+50℃-20℃~+50℃
Operating Humidity10％~90％10％~90％
Protection GradeIP65IP65
Electric Shock Protection GradeI classI class
Diameter of the suitable tube---Φ114mm
Installation Height4~6m4~6m
Weight(kg)10.59.8
Size of the Package(mm)1120×293×265（2 The outfit）1095×293×168（2The outfit）
Order type     Height (mm)   Foundation No.  Pole section size (mm)Pole material
J191A-14500B-04250×80/250×160aluminium alloy
J191A-26000B-04250×80/250×160aluminium alloy
J191B-14500B-01Φ114 steel
J191B-26000B-05Φ114 steel
