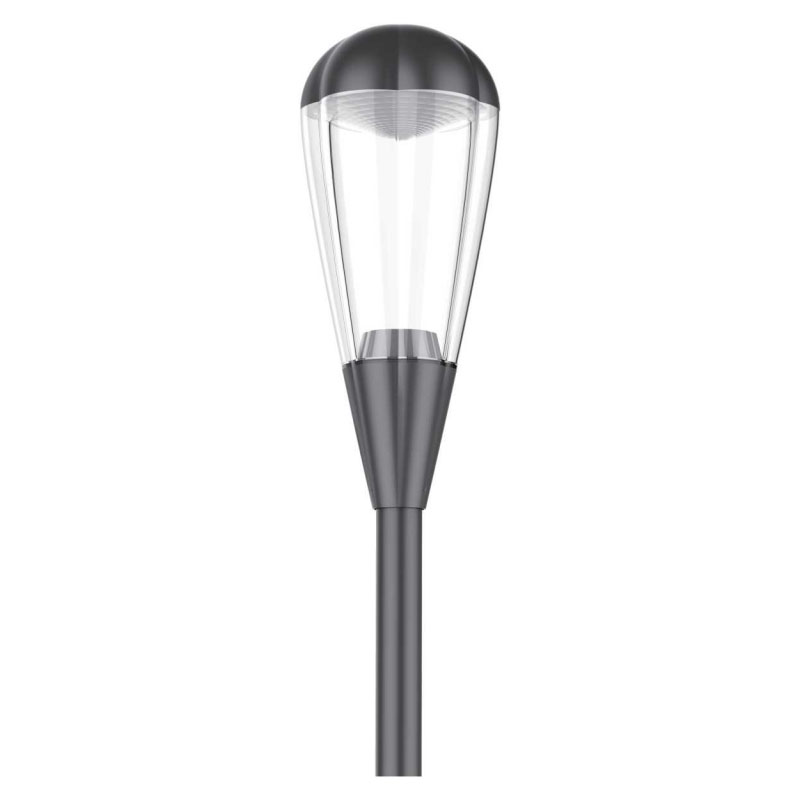

J211

‹

›

‹

  • J211
  • J211
  • J211

›

Power:25W
Luminous(lm/w):44
Material: High pressure die-casting aluminum
Installation height: 3～6m
MESSAGR
CONTACT US

•  Simple and fashion design, with independent patent

•  Humanized design, convenient disassembly and assembly,safe and reliable

•  High pressure die-casting aluminum, the surface is hot-galvanized after spraying outdoor special plastic powder

•  The main light source is using high luminous efficiency LED





mounting heightmounting height
5 m0.640
6 m0.444
7 m0.327
8 m0.250
9 m0.198
10 m0.160
11 m0.132
12 m0.111
13 m0.095
14 m0.082
15 m0.071
16 m0.063
The product modelJ211
Type of the LEDHigh light effect LED
LED Chip Quantity1pc
Rated Power25W
Input VoltageAC220V±20%
Frequency Range50/60Hz
Power Factor>0.9
CT of the Light Source(k)3000
Color Rendering IndexN Ra70
Initial Luminous Flux(lm)1100
Lifetime>30000h
Operating Temperature-20°C~+50°C
Operating Humidity10%~90%
Protection GradeIP65
Electric Shock Protection GradeI类
Diameter of the Suitable Tube①75mm
Installation Height3~6m
Weight(kg)9.5
Size of the Package(mm)665x425x820(2 The outfit)
 Order typeHeight (mm) Foundation No. Pole section size (mm)Pole material
J211-G0103700B-010 75steels
J211-G1103700B-010 75/114steels
J211-G9003800B-010 75/111steels
J211-G1334500B-01089/140steels
