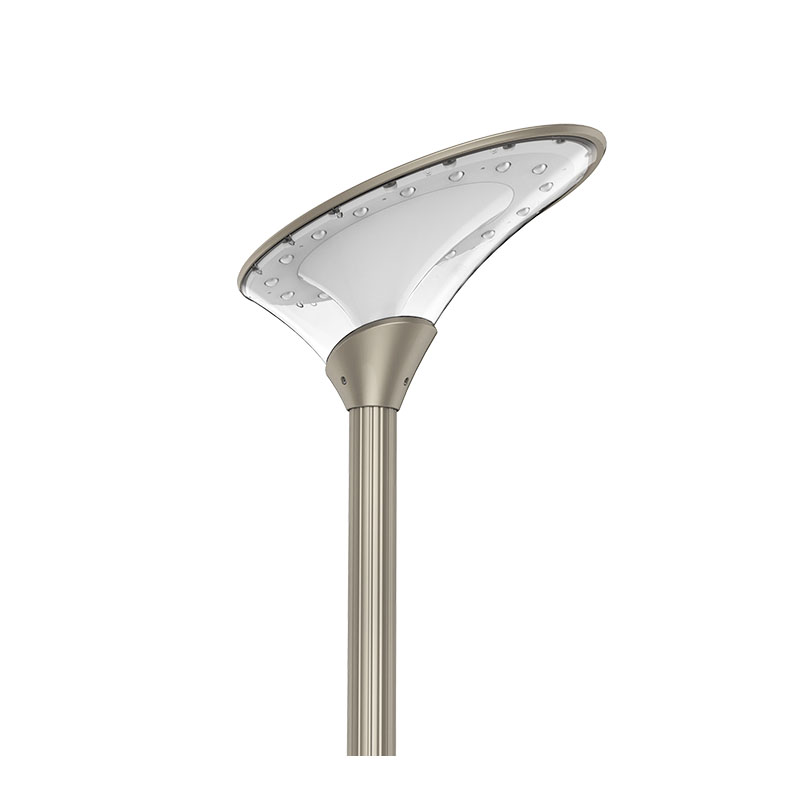

J204

‹

›

‹

  • J204
  • J204
  • J204

›

Power:36W
Material: High pressure die-casting aluminum
Installation height: 3～6m
MESSAGR
CONTACT US

•  Design like "lily”，with concise and fluent line

•  Humanized design, convenient disassembly and assembly, safe and reliable

•  High pressure die-casting aluminum, impact resistance and long life

•  The lens is optical PC, high light transmittance

•  The light source is using high luminous efficiency LED







mounting height coefficient of correction
5 m0.640
6 m0.444
7 m0.327
8 m0.250
9 m0.198
10 m0.160
11 m0.132
12 m0.111
13 m0.095
14 m0.082
15 m0.071
16 m0.063



The product modelJ204
Type of the LEDIn the power
LED Chip Quantity88pcs
Rated Power36W
Input VoltageAC220V±20%
Frequency Range50/60Hz
Power Factor>0.9
CT of the Main Light Source(k)3750~4250
CT of the Auxiliary Light Source(k)3000
Color Rendering IndexN Ra70
Lifetime>30000h
Operating Temperature-20°C〜+50°C
Operating Humidity10%~90%
Protection GradeIP65
Electric Shock Protection GradeIclass
Diameter of the suitable tube089mm
Installation Height3~6m
Weight(kg)9
Size of the Package(mm)775x473x390
Order typeHeight (mm)Foundation No.Pole section size (mm)Pole material
J204-G1403750B-01089/140aluminium alloy
J204-G9003750B-01089/131 steel
