J152

‹

›

‹

  • J152

›

Power:45W
Material: High pressure die-casting aluminum
Installation height: 4m
MESSAGR
CONTACT US

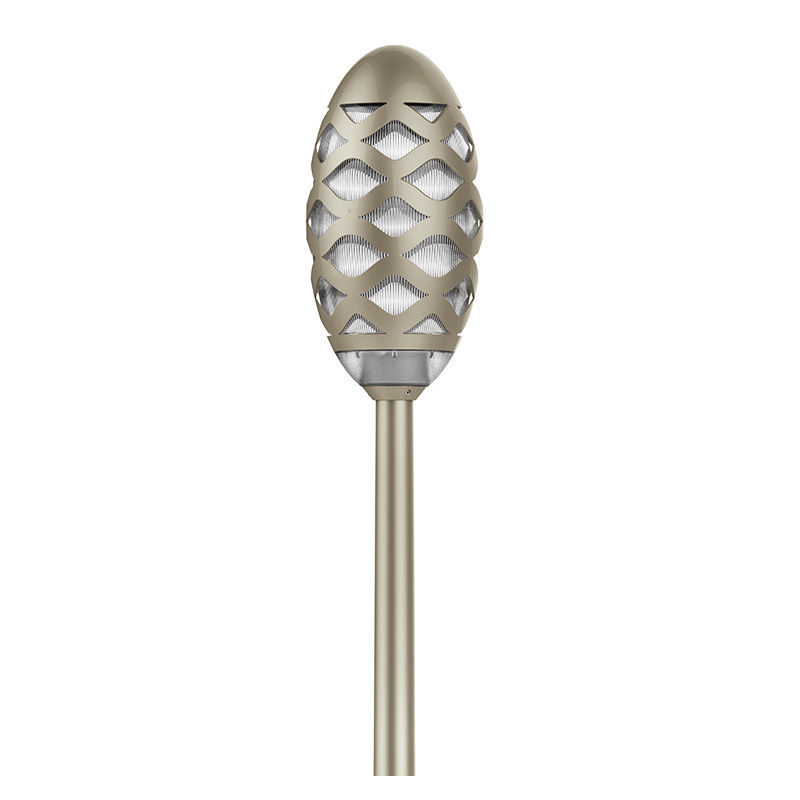

•  Design like" pinecone",with concise and fluent line

•  Humanized design, convenient disassembly and assembly, safe and reliable

•  High pressure die-casting aluminum, impact resistance and long life

•  The light source is using high luminous efficien



The product modelJ152
Main Type of the LEDIn the power
Auxiliary Type of the LEDCOB
Rated Power45W
Input VoltageAC220V±20%
Frequency Range50/60Hz
Power Factor>0.9
CT of the Main Light Source(k)3750~4250
CT of the Auxiliary Light Source(k)2400~2600
Color Rendering IndexN Ra70
Lifetime>30000h
Operating Temperature-20°C〜+50°C
Operating Humidity10%~90%
Protection GradeIP65
Electric Shock Protection GradeIclass
Diameter of the suitable tube075mm
Installation Height4m
Weight(kg)8.5
Size of the Package(mm)355x355x740

Order typeHeight (mm)Foundation No.Pole section size (mm)Pole material
J152-G1104000B-010 75/114steel
J152-G9004000B-010 75/116steel
