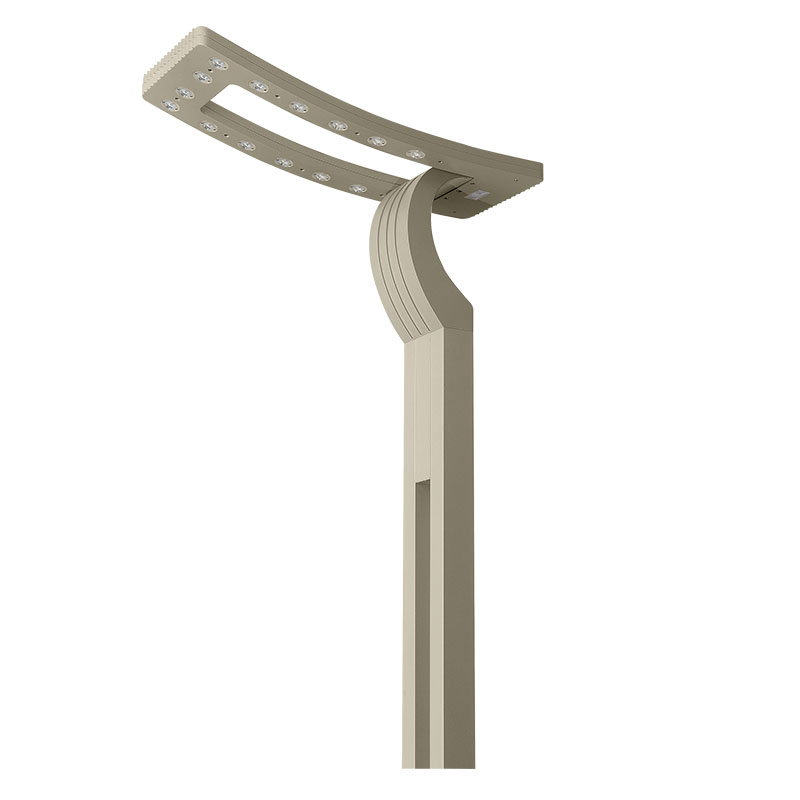

J141

‹

›

‹

  • J141

›

Power:40W
Material: High pressure die-casting aluminum
Installation height: 4m
MESSAGR
CONTACT US
•Design inspiration is from the “royal crown" of the Emperor, with simple asmooth line.

•Humanized design, convenient disassembly and assembly, safe and reliable

•High pressure die-casting aluminum, impact resistance and long life

•The lens is optical PC, high light transmittance

•Light source: high power LED





The product modelJ141A
Type of the LEDhigh-power
LED Chip Quantity15pcs
Rated Power40W
Input VoltageAC220V±20%
Frequency Range50/60Hz
Power Factor>0.9
CT of the Light Source(k)3750~4250
Color Rendering IndexN Ra70
Initial Luminous Flux(lm)2470
Lifetime>30000h
Operating Temperature-20°C〜+50°C
Operating Humidity10%~90%
Protection GradeIP65
Electric Shock Protection GradeI class
Installation Height4m
Size of the Package(mm)965x410x220
 Order typeHeight (mm)Foundation No.Pole section size (mm)Pole material
J141A4000B-0180x180aluminium alloy
