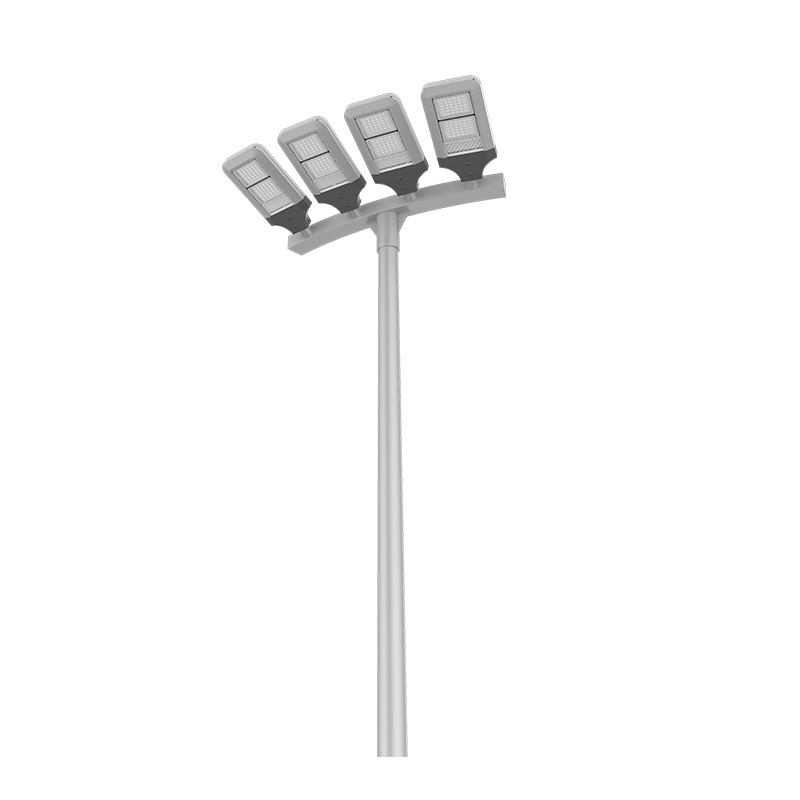

ZG211

MESSAGR

● The luminaire is a modular design

● Special optical and thermal issue structure design,make sure the light works efficiently and reliable

● Optical PC lens

● The light source is using high luminous efficiency LED

● The light is using high quality steel, the surface is sprayed by outdoor special plastic powder after hot galvanized

power (w)	road condition	elevation of light h(m)	elevation r	Meverage area average ance (Lx)Meverage area average ance (Lx)	illumination ness of intersection area UE	Average illumination of 5m outside the intersection (Lx)	Glare limit i80 (cd / Klm)
400	4 Lane rendezvous	12		49	0.414	38	17
400	4 Lane rendezvous	14		48	0.525	34	19
400	6 Lane rendezvous	12	20°	60	0.633	65	26
400	6 Lane rendezvous	14		63	0.860	56	30
600	8 Lane intersection	14		63	0.631	73	26

The product model	ZG211/ZG212/ZG213/ZG214
Type of the LED	High power: 5050	Medium power: 3,030
Input Voltage	AC220V±20%	AC220V±20%
Frequency Range	50/60Hz	50/60Hz
Power Factor	>0.9	>0.9
CT of the Light Source(k)	3750~4250	3750~4250
Color Rendering Index	≥ Ra70	≥ Ra70
Luminous Efficiency(lm/w)	≥ 140	≥ 130
Lifetime	>30000h	>30000h
Operating Temperature	-20℃~+50℃	-20℃~+50℃
Operating Humidity	10％~90％	10％~90％
Protection Grade	IP65	IP65
Electric Shock Protection Grade	I class	I class


